You’re Wasting GPU Power—Fix Your TensorFlow Input Pipeline Today

Content Overview

Overview
Resources
Setup
The dataset
The training loop
Optimize approach
The naive approach
Prefetching
Parallelizing data extraction
Parallelizing data transformation
Caching
Vectorizing mapping
Reducing memory footprint

Overview

GPUs and TPUs can radically reduce the time required to execute a single training step. Achieving peak performance requires an efficient input pipeline that delivers data for the next step before the current step has finished. The tf.data API helps to build flexible and efficient input pipelines. This document demonstrates how to use the tf.data API to build highly performant TensorFlow input pipelines.

Before you continue, check the Build TensorFlow input pipelines guide to learn how to use the tf.data API.

Resources

Build TensorFlow input pipelines
tf.data.Dataset API
Analyze tf.data performance with the TF Profiler

Setup

import tensorflow as tf

import time

2024-08-15 02:29:59.860833: E external/local_xla/xla/stream_executor/cuda/cuda_fft.cc:485] Unable to register cuFFT factory: Attempting to register factory for plugin cuFFT when one has already been registered
2024-08-15 02:29:59.882136: E external/local_xla/xla/stream_executor/cuda/cuda_dnn.cc:8454] Unable to register cuDNN factory: Attempting to register factory for plugin cuDNN when one has already been registered
2024-08-15 02:29:59.888640: E external/local_xla/xla/stream_executor/cuda/cuda_blas.cc:1452] Unable to register cuBLAS factory: Attempting to register factory for plugin cuBLAS when one has already been registered

Throughout this guide, you will iterate across a dataset and measure the performance. Making reproducible performance benchmarks can be difficult. Different factors affecting reproducibility include:

The current CPU load
The network traffic
Complex mechanisms, such as cache

To get a reproducible benchmark, you will build an artificial example.

The dataset

Start with defining a class inheriting from tf.data.Dataset called ArtificialDataset. This dataset:

Generates num_samples samples (default is 3)
Sleeps for some time before the first item to simulate opening a file
Sleeps for some time before producing each item to simulate reading data from a file

class ArtificialDataset(tf.data.Dataset):
    def _generator(num_samples):
        # Opening the file
        time.sleep(0.03)

        for sample_idx in range(num_samples):
            # Reading data (line, record) from the file
            time.sleep(0.015)

            yield (sample_idx,)

    def __new__(cls, num_samples=3):
        return tf.data.Dataset.from_generator(
            cls._generator,
            output_signature = tf.TensorSpec(shape = (1,), dtype = tf.int64),
            args=(num_samples,)
        )

This dataset is similar to the tf.data.Dataset.range one, adding a fixed delay at the beginning of and in-between each sample.

The training loop

Next, write a dummy training loop that measures how long it takes to iterate over a dataset. Training time is simulated.

def benchmark(dataset, num_epochs=2):
    start_time = time.perf_counter()
    for epoch_num in range(num_epochs):
        for sample in dataset:
            # Performing a training step
            time.sleep(0.01)
    print("Execution time:", time.perf_counter() - start_time)

Optimize performance

To exhibit how performance can be optimized, you will improve the performance of the ArtificialDataset.

The naive approach

Start with a naive pipeline using no tricks, iterating over the dataset as-is.

benchmark(ArtificialDataset())

WARNING: All log messages before absl::InitializeLog() is called are written to STDERR
I0000 00:00:1723689002.526086  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689002.529717  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689002.533395  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689002.537215  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689002.548874  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689002.552105  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689002.555507  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689002.559016  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689002.562268  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689002.565421  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689002.568842  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689002.572296  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689003.797478  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689003.799457  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689003.801473  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689003.803565  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689003.805613  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689003.807466  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689003.809382  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689003.811373  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689003.813299  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689003.815122  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689003.817022  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689003.819005  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689003.857728  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689003.860099  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689003.862063  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689003.864094  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689003.866073  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689003.867912  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689003.869940  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689003.871942  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689003.873924  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689003.876256  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689003.878556  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
I0000 00:00:1723689003.880974  112933 cuda_executor.cc:1015] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero. See more at https://github.com/torvalds/linux/blob/v6.0/Documentation/ABI/testing/sysfs-bus-pci#L344-L355
Execution time: 0.28992818999995507

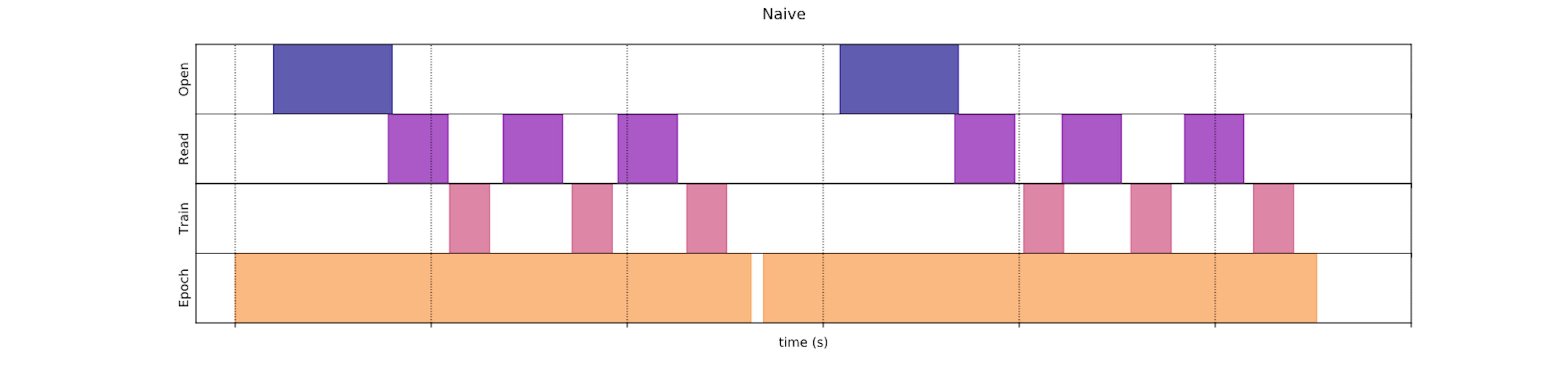

Under the hood, this is how your execution time was spent:

The plot shows that performing a training step involves:

Opening a file if it hasn’t been opened yet
Fetching a data entry from the file
Using the data for training

However, in a naive synchronous implementation like here, while your pipeline is fetching the data, your model is sitting idle. Conversely, while your model is training, the input pipeline is sitting idle. The training step time is thus the sum of opening, reading and training times.

The next sections build on this input pipeline, illustrating best practices for designing performant TensorFlow input pipelines.

Prefetching

Prefetching overlaps the preprocessing and model execution of a training step. While the model is executing training step s, the input pipeline is reading the data for step s+1. Doing so reduces the step time to the maximum (as opposed to the sum) of the training and the time it takes to extract the data.

The tf.data API provides the tf.data.Dataset.prefetch transformation. It can be used to decouple the time when data is produced from the time when data is consumed. In particular, the transformation uses a background thread and an internal buffer to prefetch elements from the input dataset ahead of the time they are requested. The number of elements to prefetch should be equal to (or possibly greater than) the number of batches consumed by a single training step. You could either manually tune this value, or set it to tf.data.AUTOTUNE, which will prompt the tf.data runtime to tune the value dynamically at runtime.

Note that the prefetch transformation provides benefits any time there is an opportunity to overlap the work of a “producer” with the work of a “consumer.”

benchmark(
    ArtificialDataset()
    .prefetch(tf.data.AUTOTUNE)
)

Execution time: 0.282483695999872

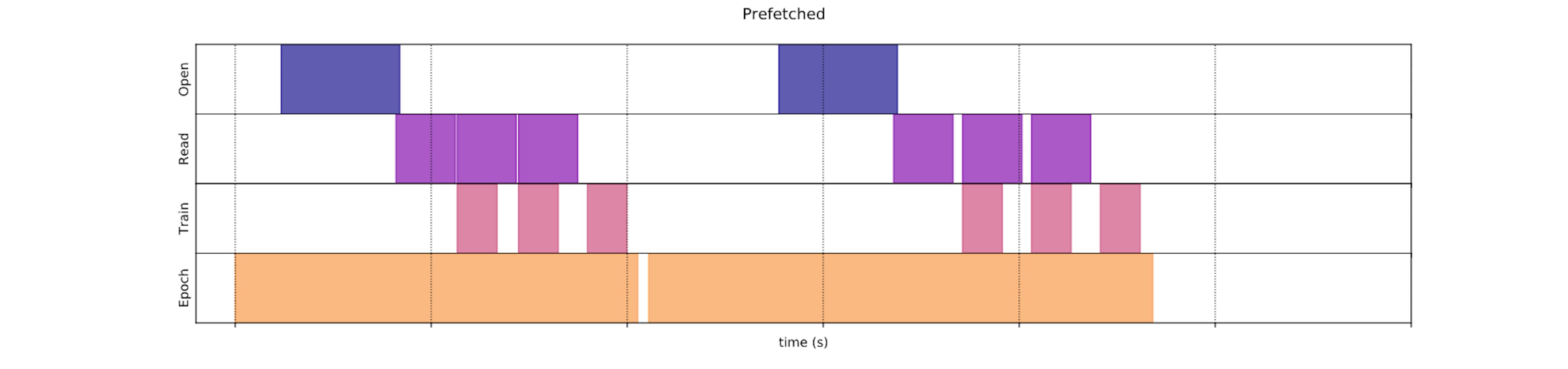

Now, as the data execution time plot shows, while the training step is running for sample 0, the input pipeline is reading the data for the sample 1, and so on.

In a real-world setting, the input data may be stored remotely (for example, on Google Cloud Storage or HDFS). A dataset pipeline that works well when reading data locally might become bottlenecked on I/O when reading data remotely because of the following differences between local and remote storage:

Time-to-first-byte: Reading the first byte of a file from remote storage can take orders of magnitude longer than from local storage.
Read throughput: While remote storage typically offers large aggregate bandwidth, reading a single file might only be able to utilize a small fraction of this bandwidth.

In addition, once the raw bytes are loaded into memory, it may also be necessary to deserialize and/or decrypt the data (e.g. protobuf), which requires additional computation. This overhead is present irrespective of whether the data is stored locally or remotely, but can be worse in the remote case if data is not prefetched effectively.

To mitigate the impact of the various data extraction overheads, the tf.data.Dataset.interleave transformation can be used to parallelize the data loading step, interleaving the contents of other datasets (such as data file readers). The number of datasets to overlap can be specified by the cycle_length argument, while the level of parallelism can be specified by the num_parallel_calls argument. Similar to the prefetch transformation, the interleave transformation supports tf.data.AUTOTUNE, which will delegate the decision about what level of parallelism to use to the tf.data runtime.

Sequential interleave

The default arguments of the tf.data.Dataset.interleave transformation make it interleave single samples from two datasets sequentially.

benchmark(
    tf.data.Dataset.range(2)
    .interleave(lambda _: ArtificialDataset())
)

Execution time: 0.4770545540004605

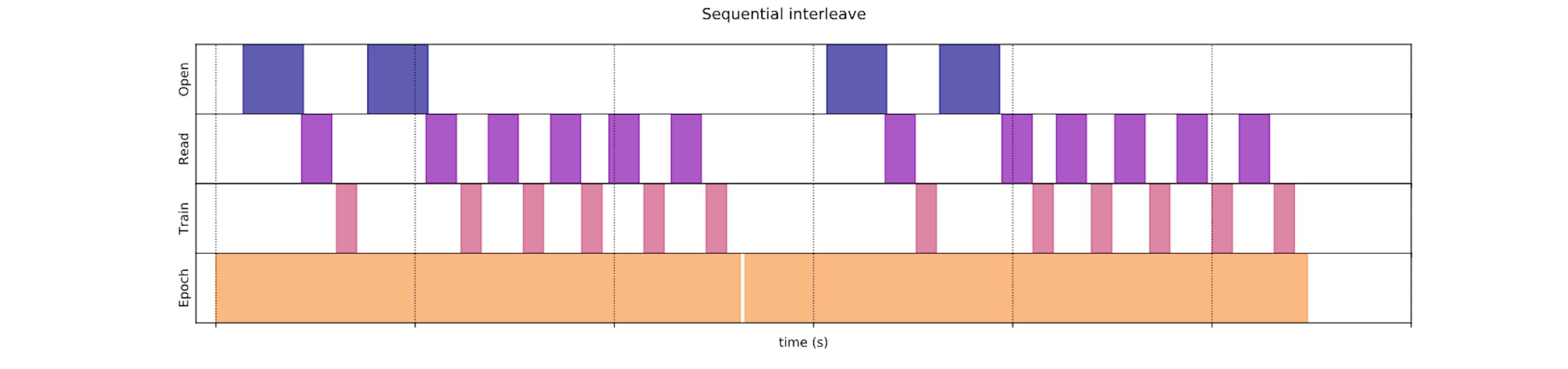

This data execution time plot allows to exhibit the behavior of the interleave transformation, fetching samples alternatively from the two datasets available. However, no performance improvement is involved here.

Parallel interleave

Now, use the num_parallel_calls argument of the interleave transformation. This loads multiple datasets in parallel, reducing the time waiting for the files to be opened.

benchmark(
    tf.data.Dataset.range(2)
    .interleave(
        lambda _: ArtificialDataset(),
        num_parallel_calls=tf.data.AUTOTUNE
    )
)

Execution time: 0.37743708600009995

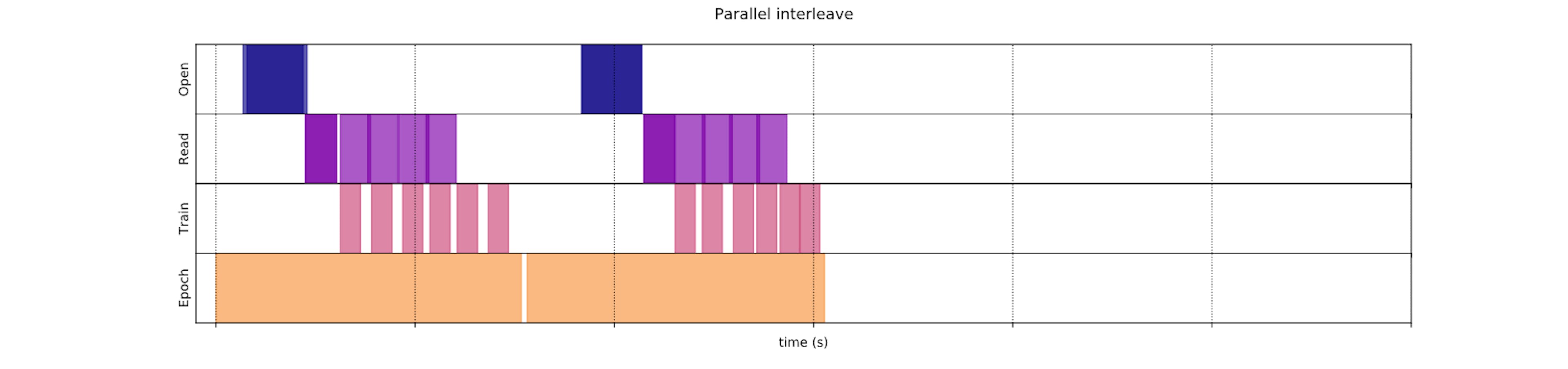

This time, as the data execution time plot shows, the reading of the two datasets is parallelized, reducing the global data processing time.

Parallelizing data transformation

When preparing data, input elements may need to be pre-processed. To this end, the tf.data API offers the tf.data.Dataset.map transformation, which applies a user-defined function to each element of the input dataset. Because input elements are independent of one another, the pre-processing can be parallelized across multiple CPU cores. To make this possible, similarly to the prefetch and interleave transformations, the map transformation provides the num_parallel_calls argument to specify the level of parallelism.

Choosing the best value for the num_parallel_calls argument depends on your hardware, characteristics of your training data (such as its size and shape), the cost of your map function, and what other processing is happening on the CPU at the same time. A simple heuristic is to use the number of available CPU cores. However, as for the prefetch and interleave transformation, the map transformation supports tf.data.AUTOTUNE which will delegate the decision about what level of parallelism to use to the tf.data runtime.

def mapped_function(s):
    # Do some hard pre-processing
    tf.py_function(lambda: time.sleep(0.03), [], ())
    return s

Sequential mapping

Start by using the map transformation without parallelism as a baseline example.

benchmark(
    ArtificialDataset()
    .map(mapped_function)
)

Execution time: 0.49222556600034295

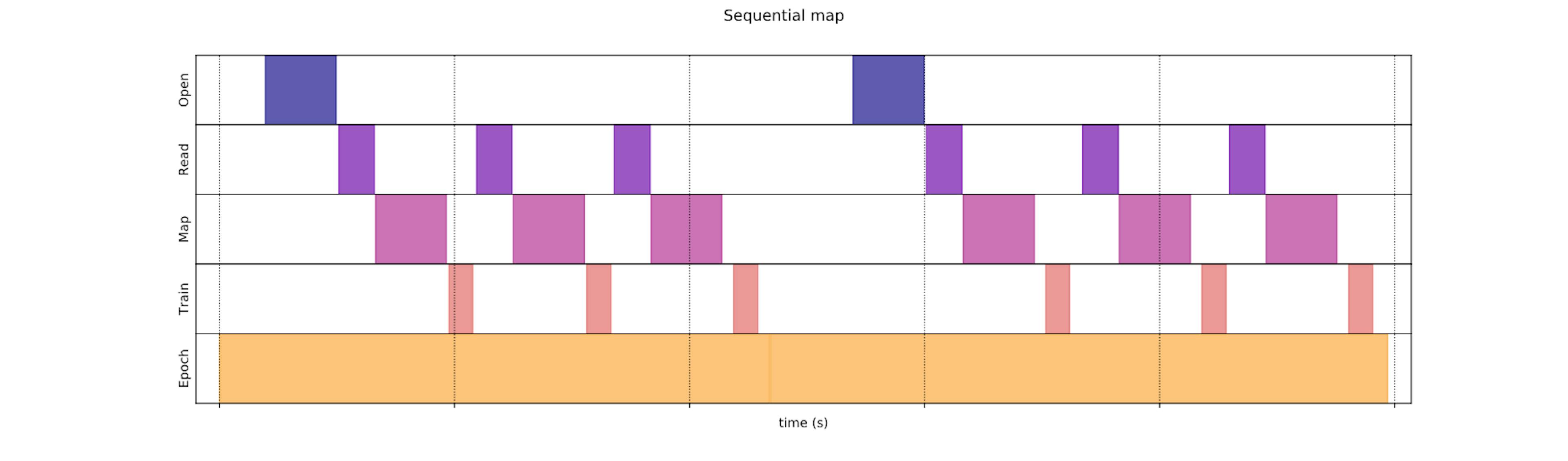

As for the naive approach, here, as the plot shows, the times spent for opening, reading, pre-processing (mapping) and training steps sum together for a single iteration.

Parallel mapping

Now, use the same pre-processing function but apply it in parallel on multiple samples.

benchmark(
    ArtificialDataset()
    .map(
        mapped_function,
        num_parallel_calls=tf.data.AUTOTUNE
    )
)

Execution time: 0.36392719900049997

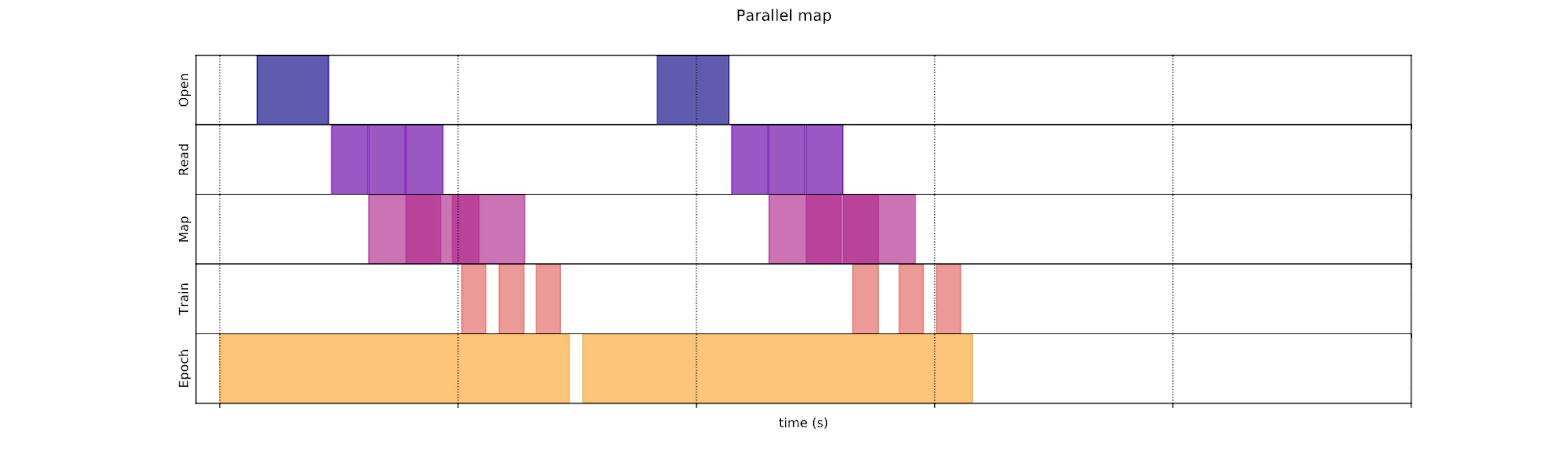

As the data plot demonstrates, the pre-processing steps overlap, reducing the overall time for a single iteration.

Caching

The tf.data.Dataset.cache transformation can cache a dataset, either in memory or on local storage. This will save some operations (like file opening and data reading) from being executed during each epoch.

benchmark(
    ArtificialDataset()
    .map(  # Apply time consuming operations before cache
        mapped_function
    ).cache(
    ),
    5
)

Execution time: 0.3864543270001377

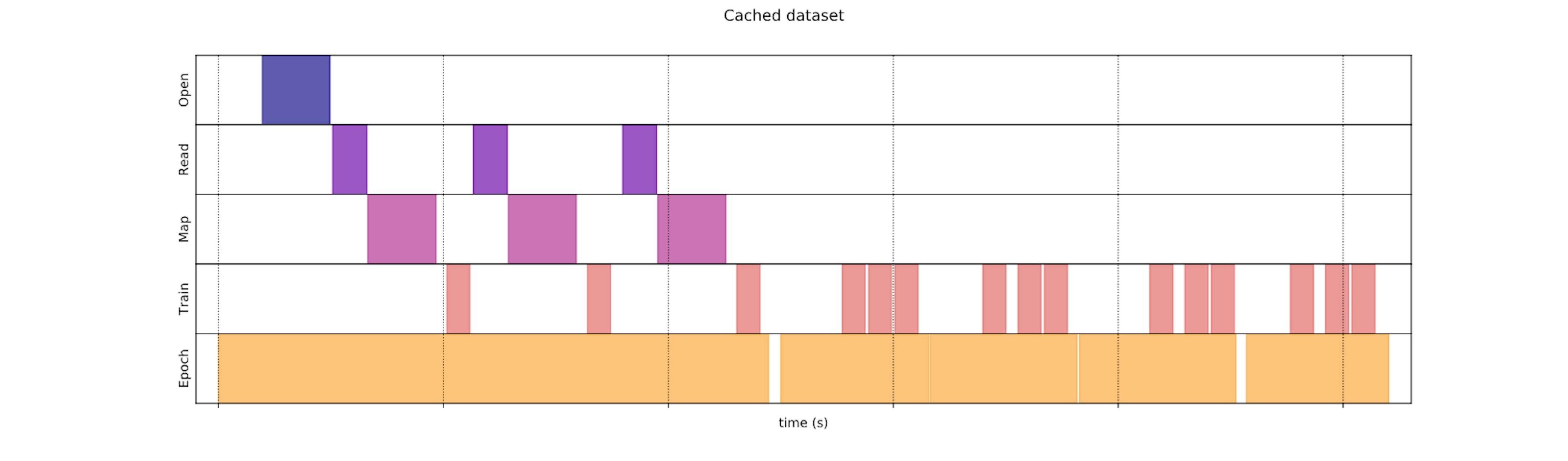

Here, the data execution time plot shows that when you cache a dataset, the transformations before the cache one (like the file opening and data reading) are executed only during the first epoch. The next epochs will reuse the data cached by thecache transformation.

If the user-defined function passed into the map transformation is expensive, apply the cache transformation after the map transformation as long as the resulting dataset can still fit into memory or local storage. If the user-defined function increases the space required to store the dataset beyond the cache capacity, either apply it after the cache transformation or consider pre-processing your data before your training job to reduce resource usage.

Vectorizing mapping

Invoking a user-defined function passed into the map transformation has overhead related to scheduling and executing the user-defined function. Vectorize the user-defined function (that is, have it operate over a batch of inputs at once) and apply the batch transformation before the map transformation.

To illustrate this good practice, your artificial dataset is not suitable. The scheduling delay is around 10 microseconds (10e-6 seconds), far less than the tens of milliseconds used in the ArtificialDataset, and thus its impact is hard to see.

For this example, use the base tf.data.Dataset.range function and simplify the training loop to its simplest form.

fast_dataset = tf.data.Dataset.range(10000)

def fast_benchmark(dataset, num_epochs=2):
    start_time = time.perf_counter()
    for _ in tf.data.Dataset.range(num_epochs):
        for _ in dataset:
            pass
    tf.print("Execution time:", time.perf_counter() - start_time)

def increment(x):
    return x+1

Scalar mapping

fast_benchmark(
    fast_dataset
    # Apply function one item at a time
    .map(increment)
    # Batch
    .batch(256)
)

Execution time: 0.23993100699954084

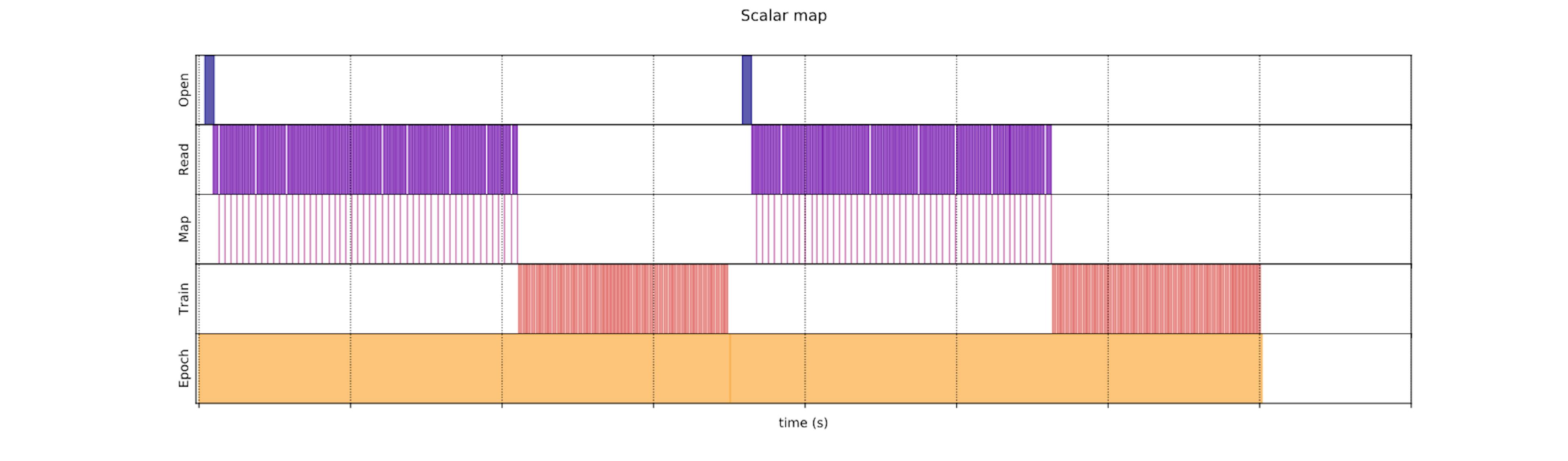

The plot above illustrates what is going on (with less samples) using the scalar mapping method. It shows that the mapped function is applied for each sample. While this function is very fast, it has some overhead that impact the time performance.

Vectorized mapping

fast_benchmark(
    fast_dataset
    .batch(256)
    # Apply function on a batch of items
    # The tf.Tensor.__add__ method already handle batches
    .map(increment)
)

Execution time: 0.04984995199993136

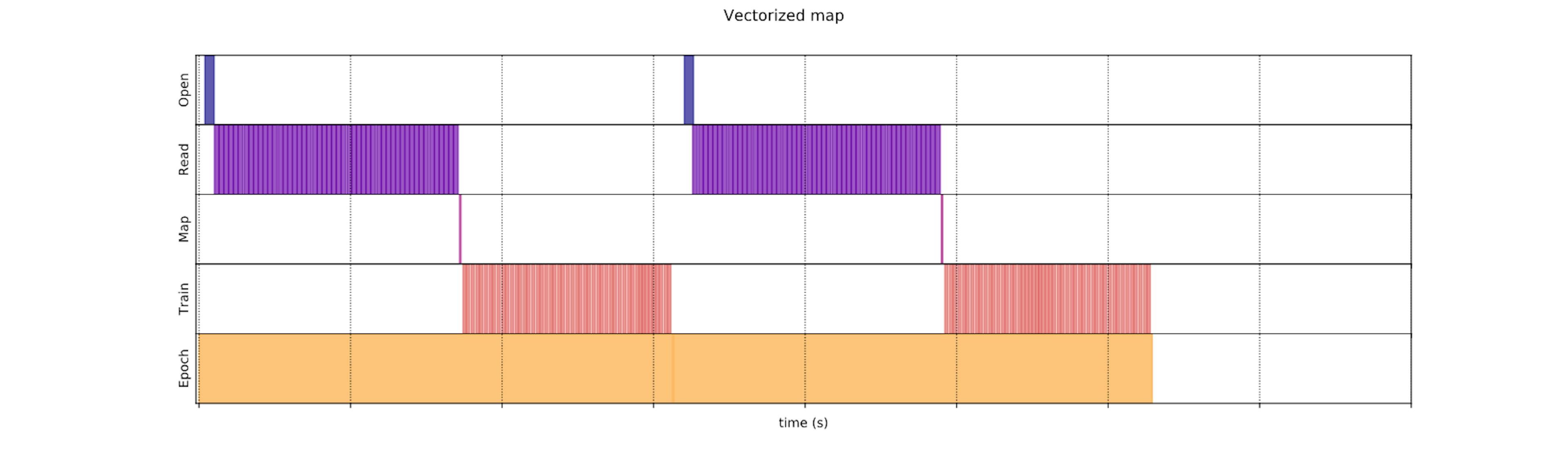

This time, the mapped function is called once and applies to a batch of sample. As the data execution time plot shows, while the function could takes more time to execute, the overhead appear only once, improving the overall time performance.

A number of transformations, including interleave, prefetch, and shuffle, maintain an internal buffer of elements. If the user-defined function passed into the map transformation changes the size of the elements, then the ordering of the map transformation and the transformations that buffer elements affects the memory usage. In general, choose the order that results in lower memory footprint, unless different ordering is desirable for performance.

Caching partial computations

It is recommended to cache the dataset after the map transformation except if this transformation makes the data too big to fit in memory. A trade-off can be achieved if your mapped function can be split in two parts: a time consuming one and a memory consuming part. In this case, you can chain your transformations like below:

dataset.map(time_consuming_mapping).cache().map(memory_consuming_mapping)

This way, the time consuming part is only executed during the first epoch, and you avoid using too much cache space.

Originally published on the TensorFlow website, this article appears here under a new headline and is licensed under CC BY 4.0. Code samples shared under the Apache 2.0 License.
